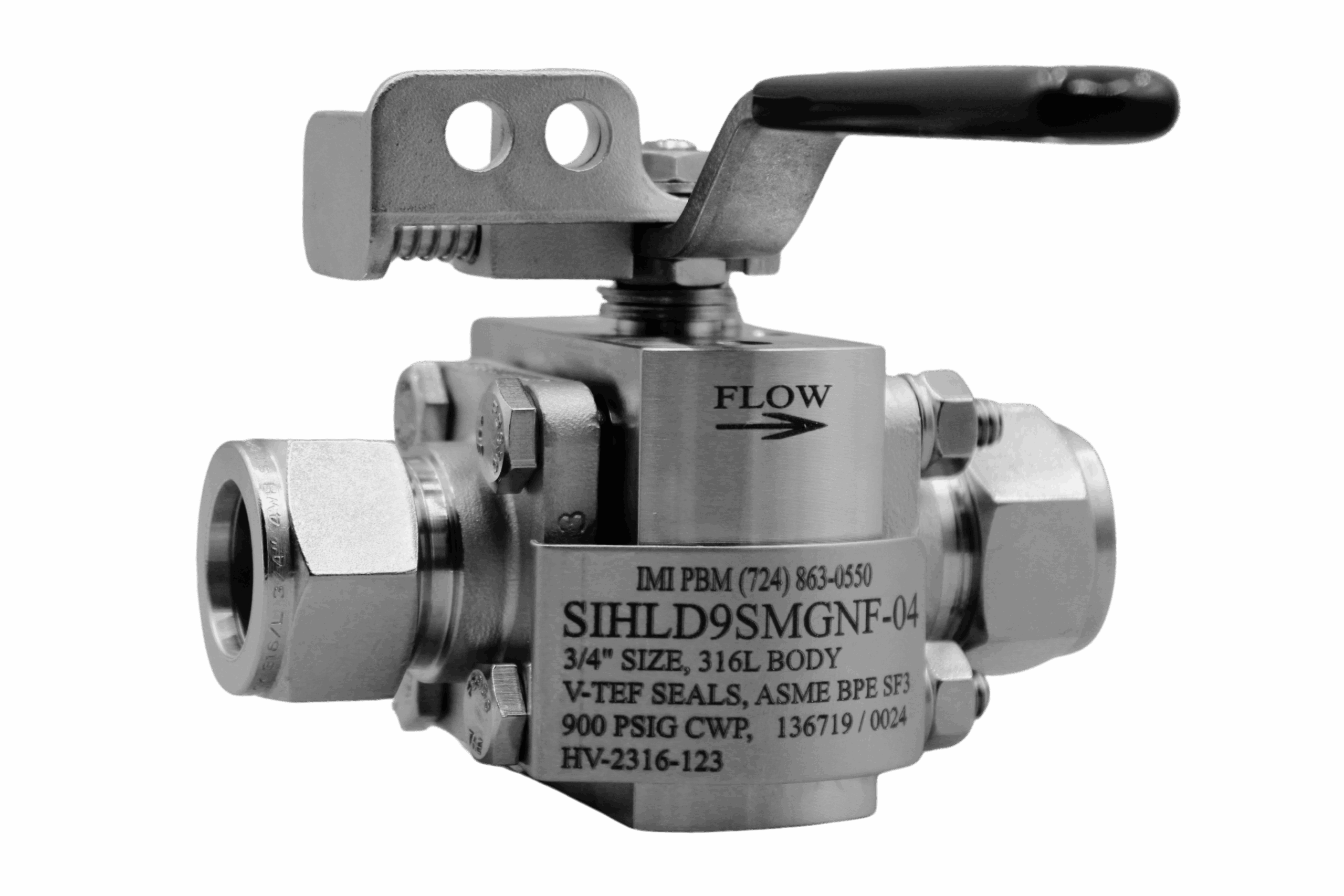

2-Way Ball Valves (Sanitary)

Description:

IMI PBM’s 2-Way Ball Valves are suited for pure process and clean steam applications. Forged and cast valves are low-controlled ferrite. Our unique Adjust-O-Seal® feature allows in-line valve adjustment to compensate for normal wear on valve seats.

  • Sizes ¼” – 6”, depending on series
  • Materials:  316L, low ferrite cast and forged, Hastelloy™, AL6XN™, others
  • End Connections: Extended tube, hygienic clamp, compression ends
  • Standard V-TEF™ seats / seals
  • Working Pressures:  up to 900 psig (62.1 bar) depending on valve series, size and temperatures
  • Temperature Range:  up to 450˚F (232.2˚C), depending on seat and seal material
  • Cv Values (gpm):  6.5 to 5,000 depending on end connection
  • ASME BPE Compliant
  • Valves are rated for full vacuum.
  • Variety of mechanical polish finishes as well as electropolish
  • US, DIN, & ISO True-Bore® Port Diameters
  • USP Class VI elastomers and FDA complaint materials available
  • Certified Material Test Reports (CMTRS) provided for wetted components
  • Full Range of Automation and Controls
  • Optional body cavity fillers minimize areas where media could become trapped and contaminate the process
  • Optional Patented Locking Lever Handle
  • Optional Self-flushing ball completely cleans valve internals during line flush
  • Piggable
  • Optional Clean Steam and Trap Design, purges or drain ports
